MATAMP GT2 MK II

Posted on Dezember 17, 2018
Filed Under . MATAMP GT2 MK II | Kommentare deaktiviert für MATAMP GT2 MK II

The GT2mkII is an incredibly dynamic hand wired twin channel head drawing on the organic tones of the GTO, GTL, LX and GT1.

Channel one features a similar circuit to the lower gain GTO mode of the GT1. With more clean headroom available this channel provides an excellent range of sounds up to the point of heavy crunch.

Channel two adds more drive plus an additional stage of gain controlled by the boost control. Together with the included foot switch you can switch between channels and engage the boost to access three distinct tones live.

Perhaps you sometimes need a 100w twin channel head, perhaps the venue doesn’t require the volume – no matter. The front panel features two input sockets, one engages all four output valves for 100w while the other switches the middle pair out of circuit. You also have the triode/pentode half power switch to reduce power to around 25w or 50w depending on input socket used.

Full independent EQ and voice switch on both channels allow a vast range of tones. Relay switching is fast and guarantees no degradation of your tone.

Heavy duty transformers made here in the UK deliver awesome low end punch, dynamics and definition. Individual bias adjusters for each valve and turret board construction is proven to be easily serviceable on the road.

Weight	25 kg
Dimensions	57 x 32 x 28 cm
Auto Biasing	No
Cathode Biasing	No
Channels	2
Effects Loop	Passive
Fixed Bias	Yes – four individual bias trim points
Footswitch Controls	Channel and boost
Handwired	Yes
Ohms Output	4, 8 & 16, two sockets on 8 and 4.
Output Class	AB Push Pull
Output Valves	4 x JJ EL34

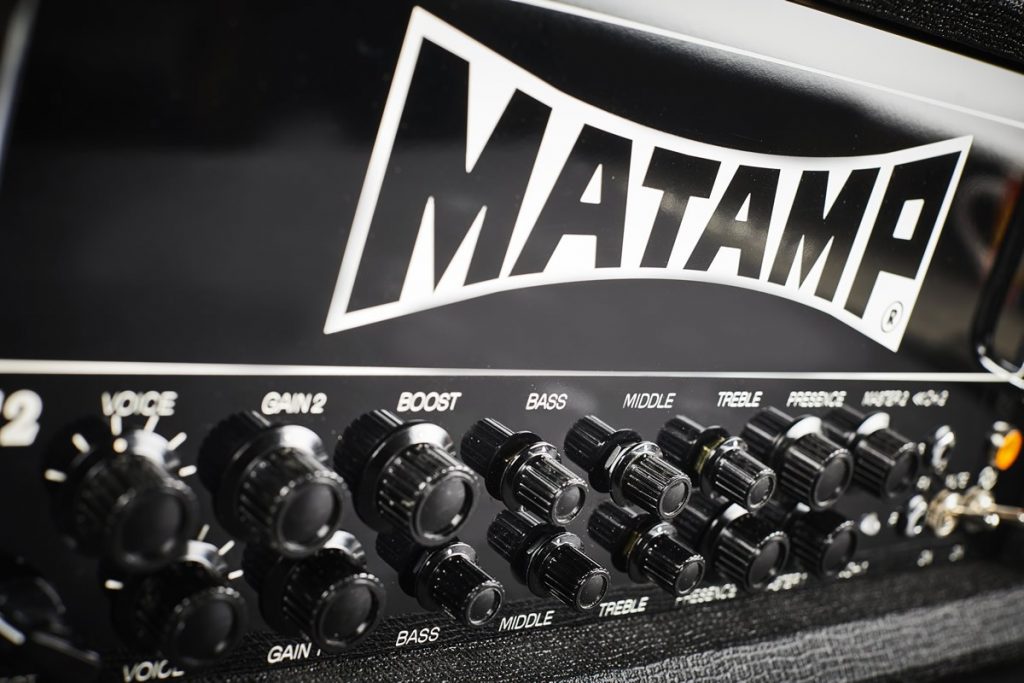

Panel Controls	Channel 1 Voice, Gain, Bass, Middle, Treble, Presence, Master Channel 2 Voice, Gain, Boost, Bass, Middle, Treble, Presence, Master Channel select
Power (W)	50/100w RMS clean power selectable from front panel input
Preamp Valves	4 x JJ ECC83
Rectification	Silicon Diode
Transformer	Proprietary UK made
Triode/Pentode Half power switch	Yes
Turret Board	Yes
